Remote Switch / Smart Wall Switch
LakiSmart Downlight, Smart Driver & Switch Module Series
Smart driver, downlight and in-wall switch module series covering 1-4 gang modules and dimming or colour-tuning drivers with Zigbee 3.0 control.
Specifications
- Modules

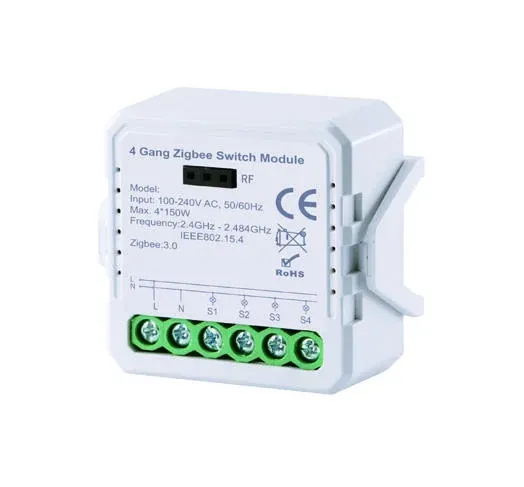

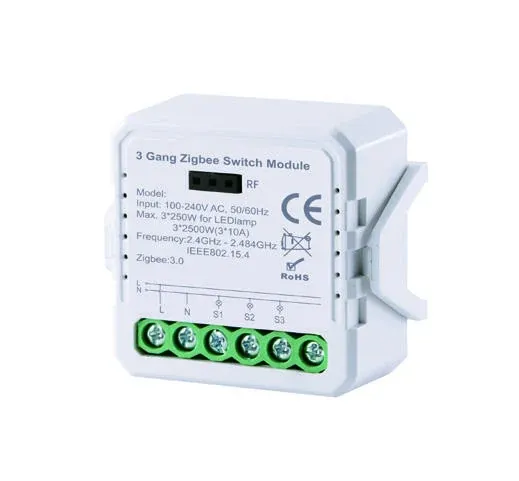

- 1-4 gang switch module
- Drivers
- Dual-colour temperature dimming and colour tuning driver power supply
- Output power
- 7 W / 9 W / 12 W / 20 W / 30 W / 40 W options
- Dimming range
- 1-100% and 1-1000%
- Protocol
- Zigbee 3.0, 2.4-2.484 GHz
- Protection
- Over-temperature, overload and short-circuit protection
Overview
A series of smart drivers, downlights and in-wall switch modules for concealed installation, covering 1-4 gang switch modules and dual-colour temperature dimming or colour tuning driver power supplies.
Key Specifications
1-4 gang switch modules, driver output power options from 7 W to 40 W, dimming range 1-100% and 1-1000%, Zigbee 3.0 on 2.4-2.484 GHz, with over-temperature, overload and short-circuit protection.
OEM & Project Supply
Module count, output power, dimming type, branding and packaging are coordinated per order. Confirm load and wiring requirements for the selected configuration.
